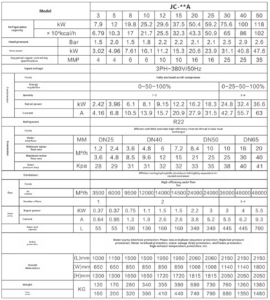

Notes:

Chilled water inlet temperature: 12℃, chilled water outlet temperature: 7℃; Ambient temperature: 35℃;

Temperature range: Chilled water outlet temperature: 7℃~30℃, Ambient temperature range: 5℃~40℃;

Evaporator fouling factor: 0.018 m³.℃/kW, Evaporator water side design pressure: 1.0 MPa;

If you require models with special voltage or refrigerants R134a/R407C/R410A, please contact us.

Due to technical improvements, external dimensions may be subject to change; dimensions are for reference only.

In addition to the above specifications, we can also provide you with customized non-standard products.

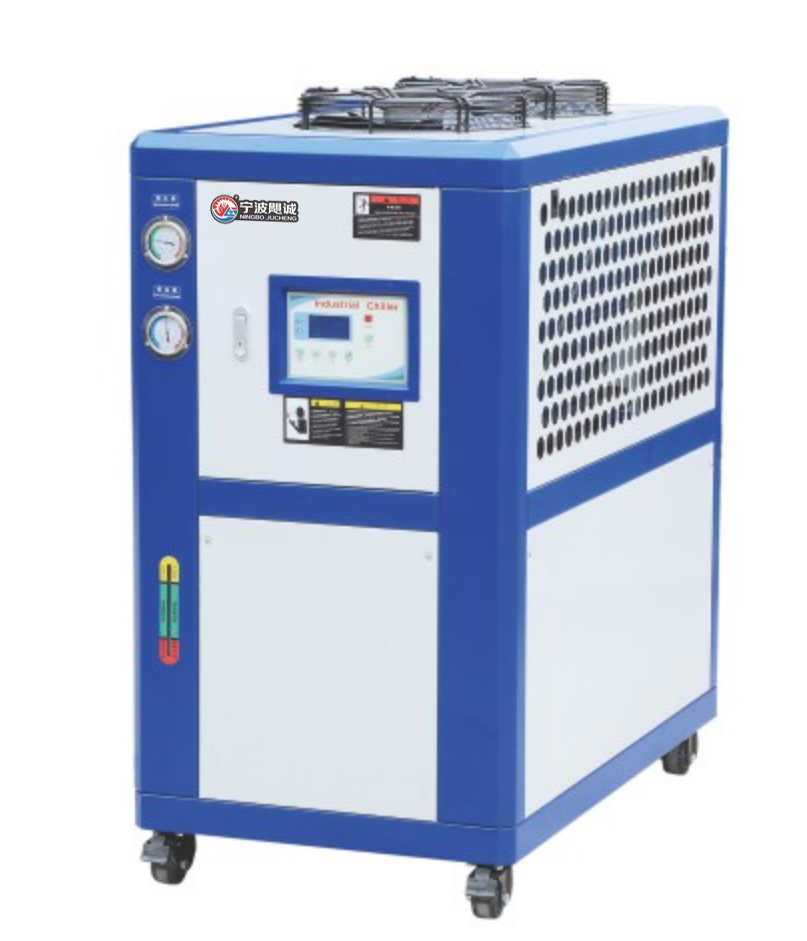

Casing and Sheet Metal:

The casing utilizes 3D design, featuring an overall European-style modular and detachable structure. The surface is treated with polyester powder coating, resulting in a beautiful and elegant appearance with strong color fastness and corrosion resistance.

System Components:

This machine uses internationally renowned intelligent, fully enclosed scroll compressors and refrigeration unit components. It is matched with highly efficient and optimized dedicated heat exchanger components. Combined with the best system design and high-precision clean assembly process, it ensures the full utilization of the unit’s energy efficiency.

Finned Condenser:

The air-side heat exchanger is made of copper tubes and hydrophilic corrugated aluminum fins, tightly joined together mechanically, resulting in high heat exchange efficiency and a low air resistance coefficient.

Shell-and-tube evaporator:

The heat exchanger utilizes the latest CAD/CAM design and manufacturing technology, and is manufactured using a CNC machining center. The baffle plates are specially processed to increase the turbulent flow effect of the chilled water. The evaporator inlet design ensures more even distribution of the refrigerant in each heat exchanger tube, resulting in superior heat exchange efficiency and a higher energy efficiency ratio. The shell is available in stainless steel, carbon steel, or PP plastic.

External rotor axial fan:

Using a well-known brand product, the fan features an all-aluminum casing, copper core, low-speed motor, and a large-angle multi-blade structure. It boasts numerous advantages such as large airflow, high static pressure, low noise, maintenance-free operation, and long lifespan. Automatic control devices can be added for use in cold regions as needed.

Electrical Components:

The electrical components and contactors are all from world-renowned brands. The temperature control unit uses a high-precision controller from a specialized field, and all protection functions are complete, ensuring the long-term stable and reliable operation of the unit.

Fluid Components:

Equipped with internationally renowned brand pipeline pumps, high-quality SUS/304 stainless steel water tanks, and stainless steel piping assembled with strictly controlled processes, ensuring no leaks.

Customization:

Special models can be customized according to the different operating conditions of various industries. For example, the external dimensions of the unit, the type of refrigerant used (water-cooled, brine-cooled, acid-resistant, alkali-resistant), and the unit’s water flow rate/pressure can all be designed and manufactured according to actual usage requirements. With a wide range of models available and outlet water temperatures from -40℃ to 30℃, we can fully meet the diverse needs of our customers.
